FULLY AUTO IMMUNOASSAY ANALYZER

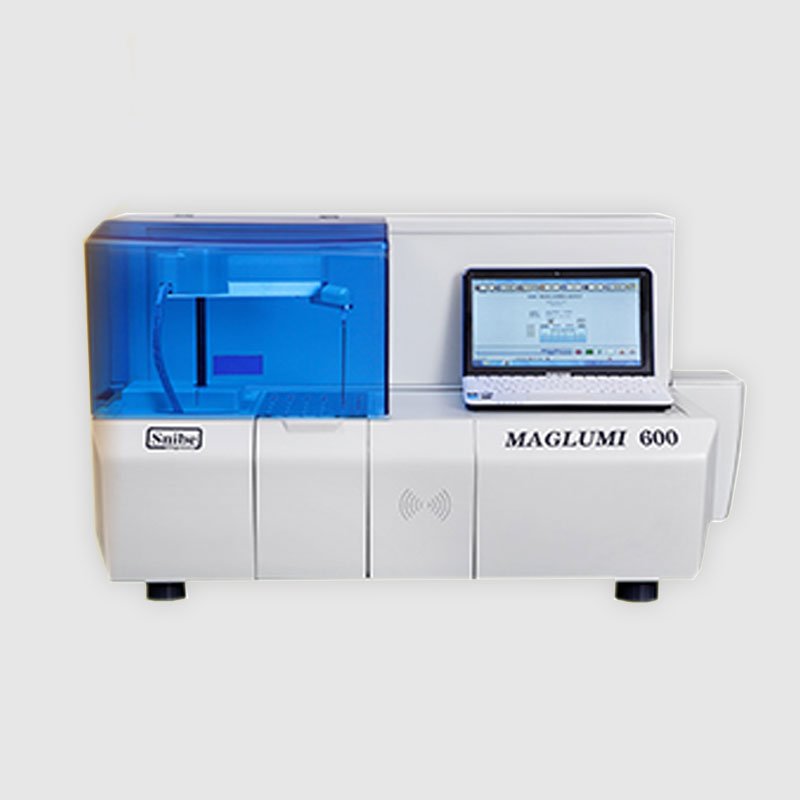

Maglumi 600
| Model | Maglumi 600 |
|---|---|
| Brand | Snibe |
| Usage | 24 hours ready-to-use |
| Sample throughput | up to 180 tests/hour |
| Time to first result | 17 minutes |
Specification
Principle Of Luminescence
- Non-enzyme involved flash chemiluminescence, long stability of reagents
- ABEI label, stable in acid and alkaline solution
Modes Of Operation
- Random, Batch and STAT
Sample Loading
- Up to 16 sample tubes
- Continuous loading, STAT available
- Analyzer auto numbered
- LIS connection
- Refrigerated sample area with independent power supply
Reagent Loading
- 4 reagents on board
- Continuous loading
- RFID reading all info of reagents
- Refrigerated reagent area
Reagent Features
- Integrated kit, ready-to-use, no pretreatment required
- Integrated kit including calibrators
- Using superparamagnetic microbeads
- RFID tag storing all info of reagent
- RFID tag with built-in master curve
- 2-point calibration to adjust master curve
- Calibration stability: Max 4 weeks
Other Features
- Clot detection
- Liquid level detection for reagent
- Optional ratio for sample dilution
- Auto dilution for high concentration sample
- Constant 37℃ incubation
- 15-30℃ Operating Temperature
Operation System
- Windows 7
- HP compatible (Dual-core CPU), Color touch screen
Interconnection
- Connection to LIS via COM or network card
- Direct operation on LIS system to test
Dimensions Weight
- 88x56x50cm, 56Kg
